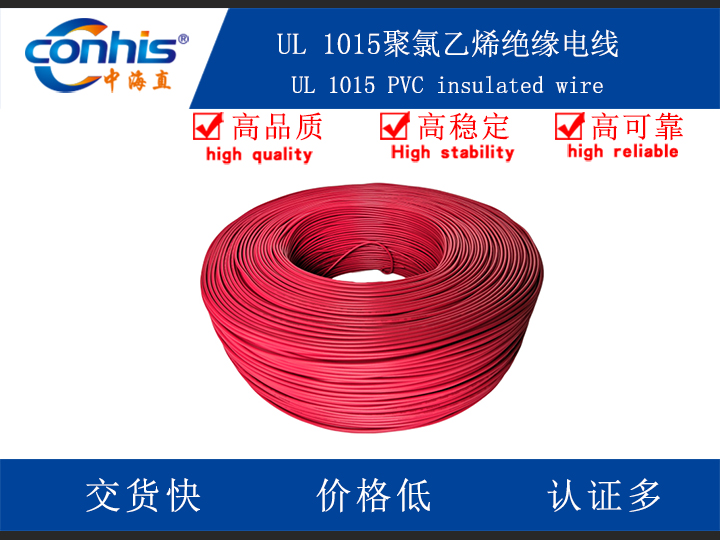

产品说明/Product description
导体: 导体采用多股绞合裸铜或镀锡铜绞合
Conductor:Conductors are stranded by multiple strands of bare copper or tin-plated copper
绝缘体/Insulator: PVC
温度范围/temperature range: -30℃~ +105℃
额定电压/Rated voltage: 600V
执行标准/Implementation criteria: UL758、UL1581 CSA C22.2
型号/Mode |
规格/Specifications |
铜丝根数/标称直径 |
成品外径OD |
电缆重量km/kg |
UL 1015 |
28AWG |
7/0.127 |
1.96 |
4.9 |
UL 1015 |
26AWG |
7/0.16 |
2.06 |
5.7 |
UL 1015 |
24AWG |
11/0.16 |
2.19 |
6.9 |
UL 1015 |
22AWG |
17/0.16 |
2.34 |
8.5 |
UL 1015 |
20AWG |
26/0.16 |
2.52 |
10.8 |
UL 1015 |
18AWG |
41/0.16 |
2.78 |
14.4 |
UL 1015 |
16AWG |
65/0.16 |
3.15 |
20.4 |
UL 1015 |
14AWG |
41/0.254 |
3.54 |
28.7 |
UL 1015 |
12AWG |
65/0.254 |
4.04 |
41.5 |
