产品说明/Product description

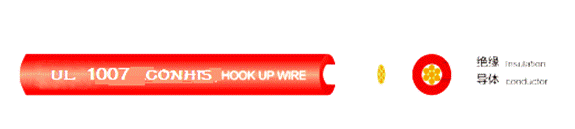

导体:导体采用多股绞合裸铜或镀锡铜绞合
Conductor: Conductors are stranded by multiple strands of bare copper or tin-plated copper
绝缘体/Insulator: PVC
温度范围/temperature range: -30℃~ +80℃
额定电压/Rated voltage:300V
执行标准/Implementation criteria: UL758、UL1581 CSA C22.2
型号/Mode |
规格/Specifications |
铜丝根数/标称直径 |
成品外径OD |
电缆重量km/kg |
UL 1007 |
30AWG |
7/0.1 |
1.05 |
1.5 |
UL 1007 |
28AWG |
7/0.127 |
1.2 |
2.2 |
UL 1007 |
26AWG |
7/0.16 |
1.31 |
2.9 |
UL 1007 |
24AWG |
11/0.16 |
1.43 |
3.9 |
UL 1007 |
22AWG |
17/0.16 |
1.58 |
5.2 |
UL 1007 |
20AWG |
26/0.16 |
1.76 |
7.2 |
UL 1007 |
18AWG |
41/0.16 |
2.02 |
10.4 |
UL 1007 |
16AWG |
65/0.16 |
2.38 |
15.6 |
