  • 52RVV 电子线

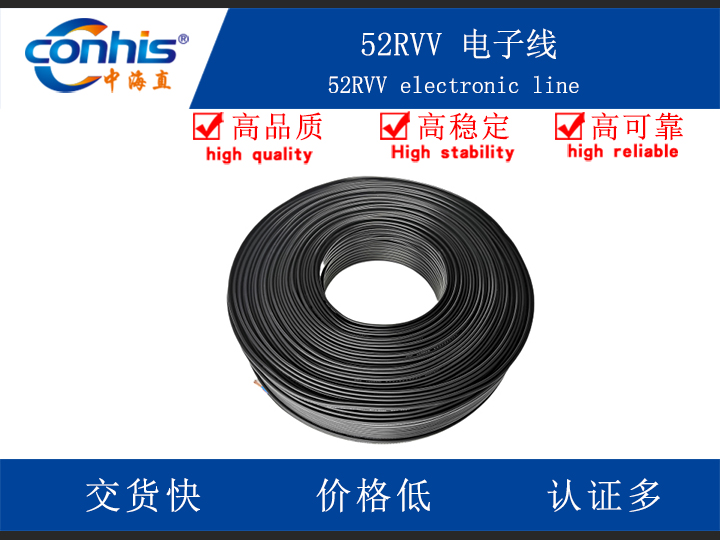

52RVV 电子线

关键词:52RVV 电子线
产品概述:产品说明/Product description导体:导体采用多股绞合裸铜或镀锡线绞合Conductor: Conductors are stranded by strands of bare copper or tin-plated wires.绝缘体/Insulator: 聚氯乙烯绝缘额定温度/Rated temperature:70 ℃护套/Sheath:聚氯乙烯护套/Polyvinyl ch…
在线咨询
产品详情 图片集锦

产品说明/Product description


导体:导体采用多股绞合裸铜或镀锡线绞合

Conductor: Conductors are stranded by strands of bare copper or tin-plated wires.

绝缘体/Insulator: 聚氯乙烯绝缘

额定温度/Rated temperature:70 ℃

护套/Sheath:聚氯乙烯护套/Polyvinyl chloride sheath

额定电压/Rated voltage: 300/300V

执行标准/Implementation criteria: GB/T 5023.5-2008



型号/Model

规格/芯数Specification/Number of Cores

铜丝根数/标称直径Number/nominal diameter of copper wire

内绝缘外径Internal Insulation and External Diameter

外绝缘外径External Insulation Diameter

电缆重量km/kgCable weight km/kg

52(RVV)

2/0.5mm²

28/0.15

1.8

5.0

35.82

52(RVV)

2/0.75mm²

42/0.15

2.1

5.6

46.72

52(RVV)

3/0.5mm²

28/0.15

2.0

5.6

46.74

52(RVV)

3/0.75mm²

42/0.15

2.3

6.6

66.15

备注

2芯外形有圆扁可选
