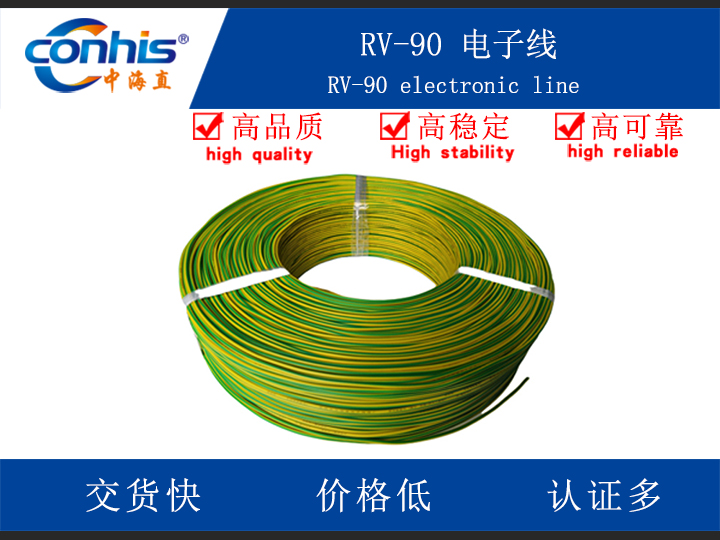

产品说明/Product description

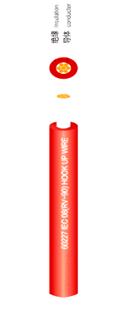

导体: 导体采用多股裸铜软胶线
Conductor: Conductor with multiple bare copper flexible wires
绝缘体/Insulator: 聚氯乙烯绝缘 /PVC
颜色/ color: PVC全色码/panchromatic code
额定温度/Rated temperature: 90℃
额定电压/Rated voltage: 300/500V
执行标准/Implementation criteria: GB/T5023.3 -2008/1997
型号/Mode |
规格/Specifications |
铜丝根数/标称直径 |
成品外径OD |
电缆重量km/kg |
08(RV-90) |
0.5mm² |
28/0.15 |
2.23 |
9.4 |
08(RV-90) |
0.75mm² |
42/0.15 |
2.45 |
12.9 |
08(RV-90) |
1.0mm² |
32/0.2 |
2.62 |
15.3 |
08(RV-90) |
1.5mm² |
30/0.25 |
3.1 |
21.1 |
08(RV-90) |
2.5mm² |
49/0.25 |
3.7 |
32.3 |
